BOTTOM BRACKET PARTS

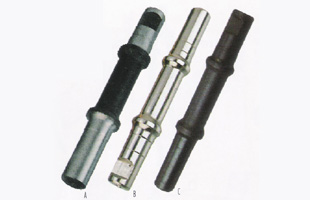

GIBBBA-101 B.B. AXLE COTTERED TYPE
(A) B.B. Axle Cotterred - Centre Black. (B) B.B. Axle cottered BCP. (C) B.B. Axle cotered - Full black. |

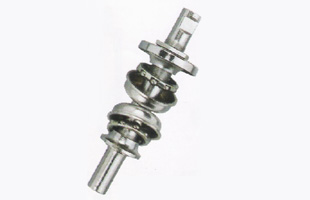

GIBBBA-102 B.B. SET THOMSON TYPE
(A) Set of 9 (Cottered) 35mm, 3/16" x 10 Balls. Grooved Axle, length -150mm. (B) B.B. Set/7, 35MM (C) B.B. Set/7, 40mm (D) B.B. Set/7 Russian type CP/Golden. |

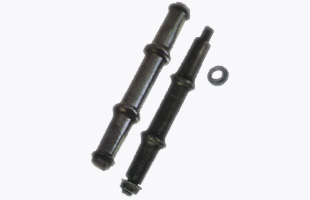

GIBBBA-103 B.B. AXLE COTTERLESS
(A) B.B. Axle Cotterless - Nut Type. (B) B.B. Axle Cotterless - Bolt Type. |

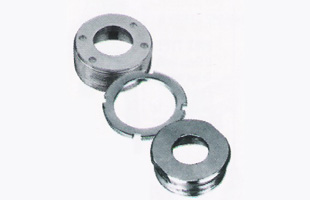

GIBBBC-101 B.B. CUP ITALIAN. TYPE
Set of 3, Thread : 34.8mm 24 TPI BSCY RH-RH (35 & 36mm Also Available.) |
GIBBBC-102 B.B. CUP PHILLIP TYPE
Set of 3, Rh & LH Threads Thread : 34.8 x 24 TPI or 26 TPI, BSCY RH+LH 35x1mm |
GIBBBC-103 B.B. CUP RL TYPE
Set of 3, RH Thread : 34.8 x 24 TPI or 26 TPI, BSCY RH+LH |

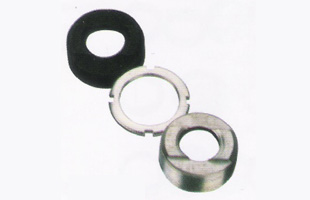

GIBBBC-104 B.B. CUP SLR/FRENCH TYPE
Set of 3, Thread : 35mm x 1mm, RH-RH : 36mm x 1mm Pitch ISO Metric Threads |

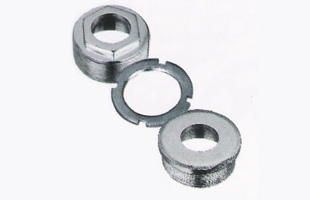

GIBBBC-105 B.B. CUP FRENCH TYPE
B.B. Cup Hex French Set of 3 Thread : 35mm x 1mm Pitch RHT. |
GIBBBC-106 B.B. CUP GROOVED TYPE
B.B. Cup set of 3 Grooved Type Thread : 34.8 x 24 TPI |

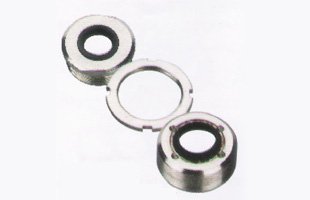

GIBBBC-107 B.B. CUP PH. WATER PROOF TYPE
B.B. Cup set Water Proof PH Type Thread : 34.8 x 24TPI |

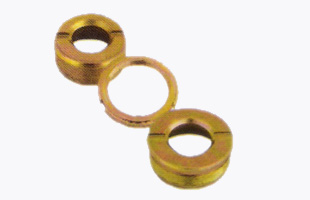

GIBBBC-108 B.B. CUP RUSSIAN TYPE
Set of 3 Thread : 34.8 x 1mm, or 35 RH-LH Finish BCP/CP/Golden |
